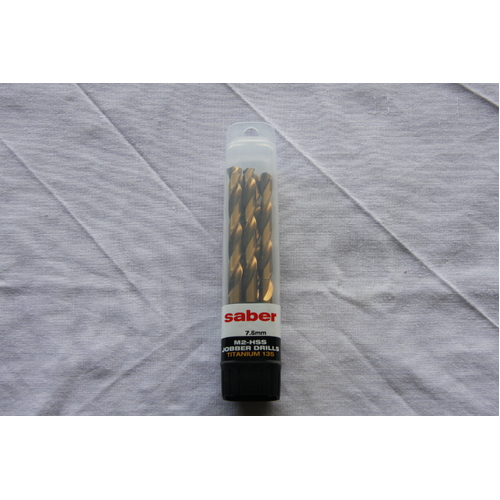

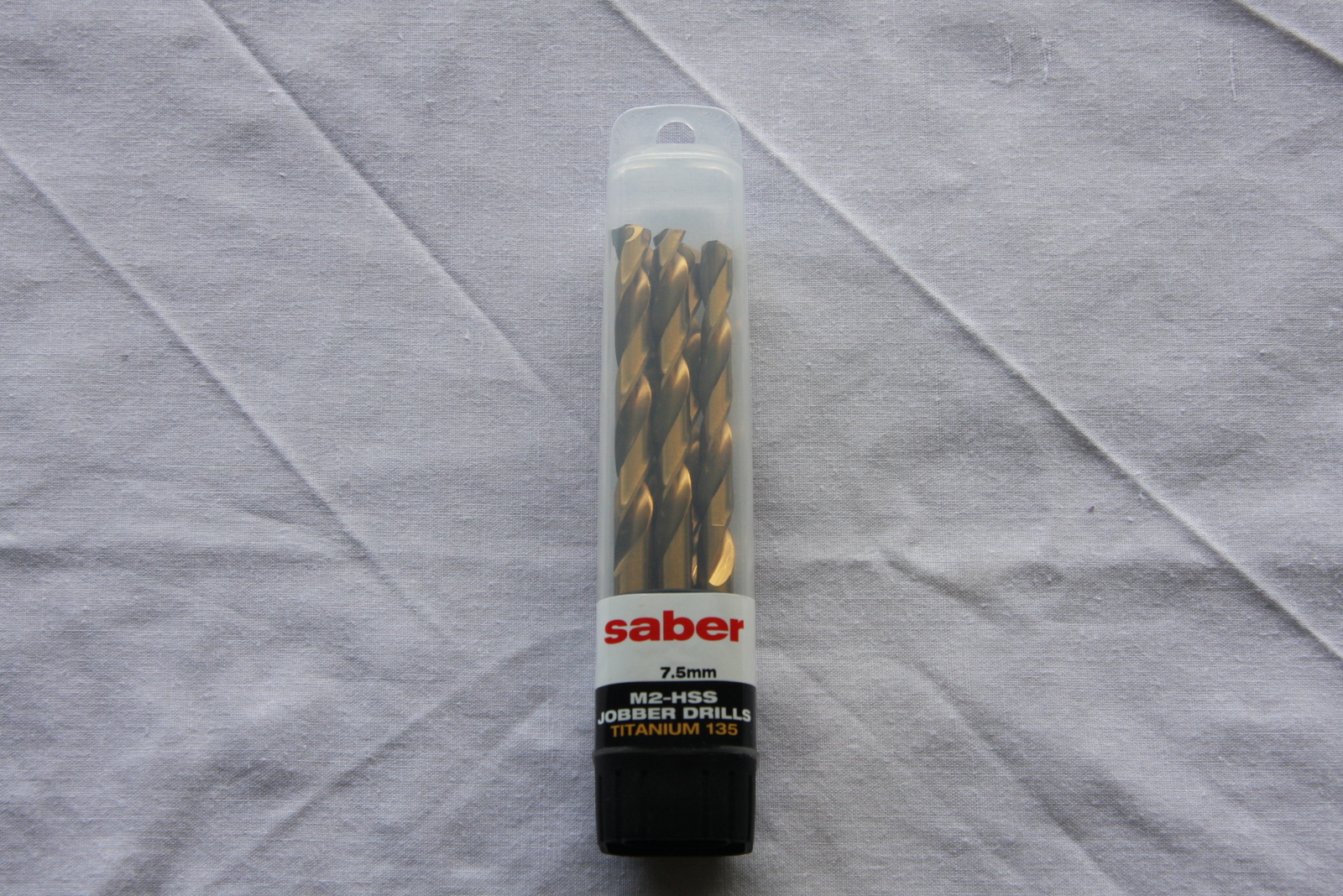

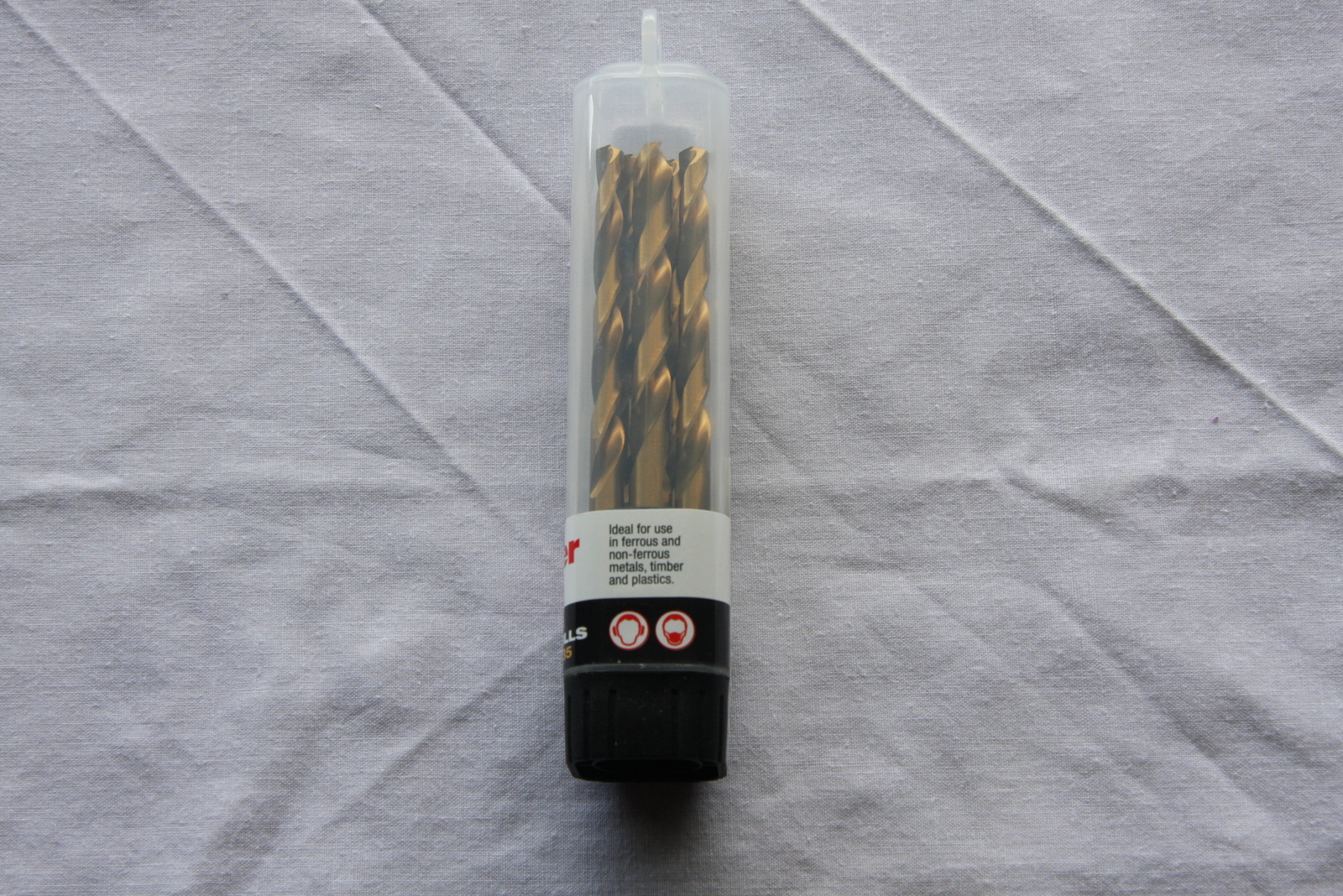

Saber 7.50mm TiN Coated M2-HSS Jobber Drill 5 Pack
$33.00
- Saber 7.50mm TiN Coated M2-HSS Twist Drill
- DIN338
- 135º Split Point (crankshaft point).
- Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
- The 135º point should be used to cut harder steel materials especially in deep hole applications.
- In these situations it will produce thicker chips minimising work hardening of the cavity.
- Faster penetration reduces abrasion and friction along the cutting edges.
- Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
- The coating higher speed and feed rates can be achieved and tool life is greatly increased.
- The TiN coating is achieved by Physical Vapour Deposition (PVD).
- As with all surface coated tools, performance will deteriorate after resharpening.
(8010-7.50)
| Part Number: | 8010-7.50 |
| Brand: | Saber |
| Pack Qty: | 5 |
| Feed per revolution mm: | 0.16 |
| Spindle Speed Aluminium/Brass RPM: | 2590 |
| Spindle Speed Cast Iron RPM: | 1019 |
| Spindle Speed Free Cutting Steel RPM: | 1826 |
| Spindle Speed Malleable Iron RPM: | 1147 |
| Spindle Speed Med. Carbon Steel RPM: | 1274 |
| Spindle Speed Stainless Steel RPM: | 510 |
| Spindle Speed Tool Steel RPM: | 764 |
| Spindle Speed Wood/Plastic RPM: | 3864 |
| Diameter (mm): | 7.5 |
| Flute Length (mm): | 69 |
| Overall Length (mm): | 109 |
| SKU | 8010-7.50 |
| Brand | Saber |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000500000m3 |
